Chevron R15/750

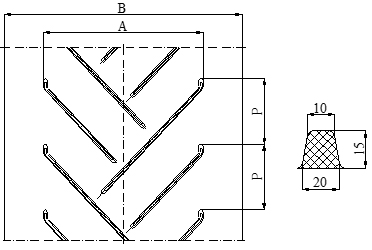

r15/750
TypeB [mm]A [mm]P [mm]
Chevron R15/750800750317
Chevron R15/750850750317
Chevron R15/750900750317
Chevron R15/750950750317
Chevron R15/7501000750317
Chevron R15/7501050750317
Chevron R15/7501100750317
Chevron R15/7501150750317
Chevron R15/7501200750317
Chevron R15/7501250750317
Chevron R15/7501300750317
Chevron R15/7501350750317
Chevron R15/7501400750317
Chevron R15/7501450750317
Chevron R15/7501500750317
Chevron R15/7501550750317
Chevron R15/7501600750317
Type of insertionsEP80EP100EP125EP160
Insertions number2-4
Tensile strength,
Kgf/cm, min		160 – 240200 – 400250 – 500315 – 630
Width [mm]800-1600
Thickness [mm]4 – 126 – 126 – 126 – 12
Rubber Mixture properties for coversGeneral UseResistance to TemperatureResistance to Oil
wxyzT2T3MORGROS
Tensile strength,
daN/cm2,
min		180250200150150120150140150
Elongation at
break, min		40045040070450350350350350
Abrasion resistance
(volume of wear),
mm3, max		90120150250150200200200150
Resistant to oilNoNoNoNoNoNoMediumGoodVery Good
Working temperature,
°C [max]		707070701201507080100
