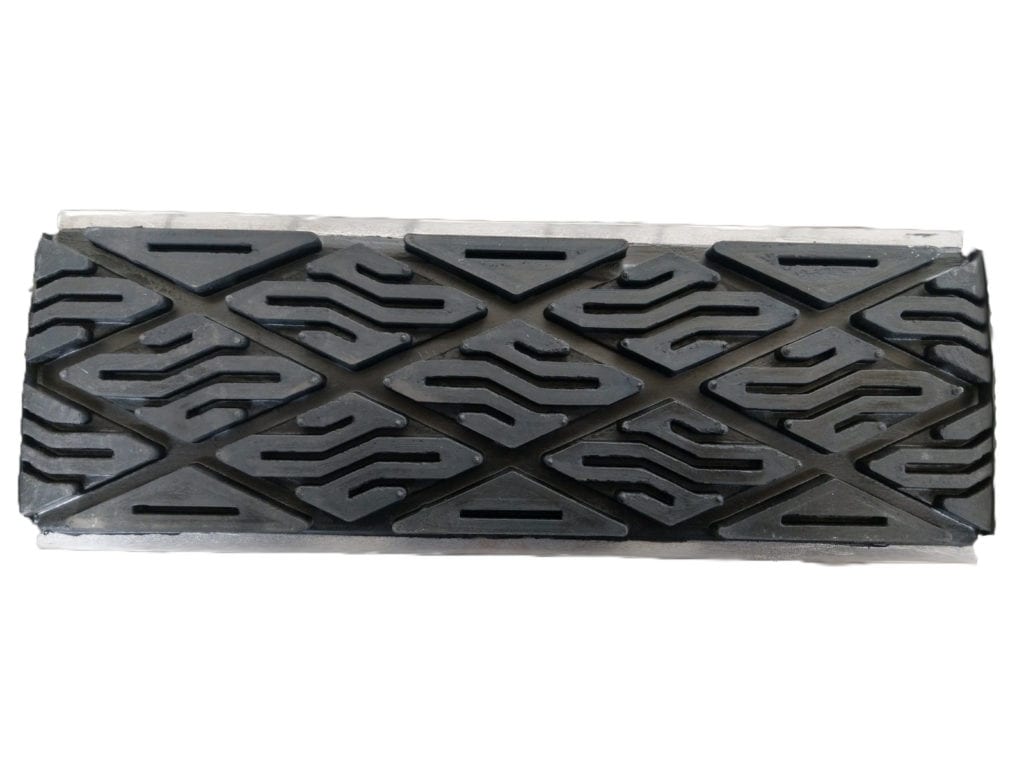

Friction Plates

Friction plates for conveyor belts are manufactured from a metallic plate which is 2mm thick, covered by a layer of vulcanised rubber. Its surface is patterned with different shapes and the surface of the drive pulleys must be patterned.

Depending on the diameter of the drum, the metallic plate is curved, while the metallic surface is protected from the weather by a layer of paint.

Friction plates come in a choice of widths and two lengths: 180mm and 384mm – the rubber is 15mm thick. The client chooses the characteristics of the rubber mixture.

Dimensions	Type	I	II	III
	Length (L), mm	384	180	384
	Width (l2), mm	142	142	91
	Thickness (h), mm	15	15	15
	Width (l1), mm	120	120	73
	Height (h1), mm	2	2	2
	Height (h2), mm	3	3	3
Metallic Surface	Protected from weather by a layer of paint
Metallic Plate	It is curved depending on the diameter of the drum
Aspect	Smooth surface
Colour	Black

Characteristics	Option
Characteristics	A	B	C
Hardness (°Sh A)	65±5	70±5	70±5
Tensile Strength, (kgf/cm2)	150	130	120
Elongation at Break, (%)	450	300	250
Abrasion Resistance, (mm3)	150	180	200
Protecting the environment		The rubber mixture is not dangerous for humans or the environment
