Metroscrape

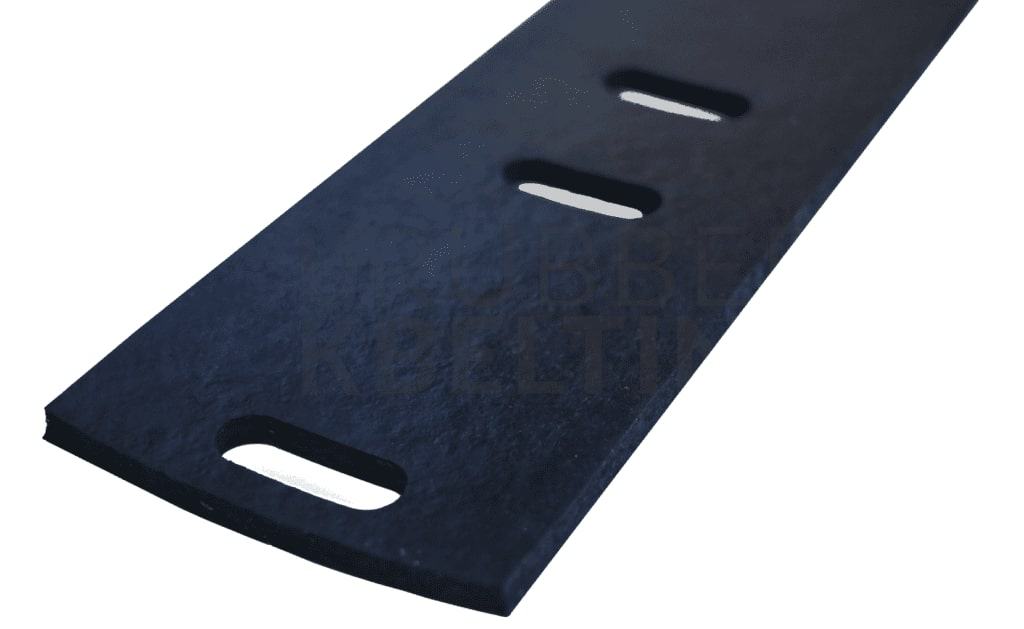

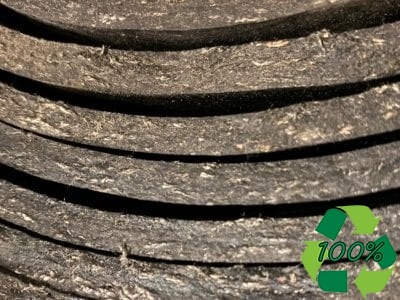

METROSCRAPE™ is manufactured using recycled high quality tyres resulting in an economical and environmentally friendly product. The fully vulcanised rubber has inclusion of majorly dispersed fibres creating a unique compound that exhibits outstanding strength and durability. METROSCRAPE™ can withstand harsh conditions like exposure to ozone and low temperatures. It’s available in flat sheets for die cut parts/slit to bespoke widths or can be moulded to create bespoke parts.

METROSCRAPE™ is an excellent economical choice for applications where superior tear resistance and durability are required. Applications include but are not limited to trucking, baffles/close-outs, air dams, splash shields, mud guards and mud flaps. Agricultural used for scrapers, step pads, cab mats, engine close outs and grain deflectors. Many mining, railroad and anti-vibration applications.

Technical Specifications
Metroscrape™ multiply fabrics reinforced rubber
Properties	Test Method	Values	Values
Properties	Test Method	FPS Units	Metric Units
Colour	–	–	Black
Density	ASTM D297	g/cm3	1.25 g/cm3
Hardness	ASTM D2240	A SCALE	80 SH A
Tensile strength with grain	ASTM D412	MPA	5
Ultimate elongation with grain	ASTM D412	%	0.45
Abrasion resistance ( max )	ASTM D5963	mm3	110mm3
Tear strength across grain	ASTM D624	kn/m	52
Temperature range		Celsius	-40 TO + 75º c
Low temperature brittleness@ -40c	ASTM D2137-11		Non brittle in both directions under 7 x magnification
Flammability – maximum burn rate 100mm/mm	FMVSS 302	mm/mm	100 max
