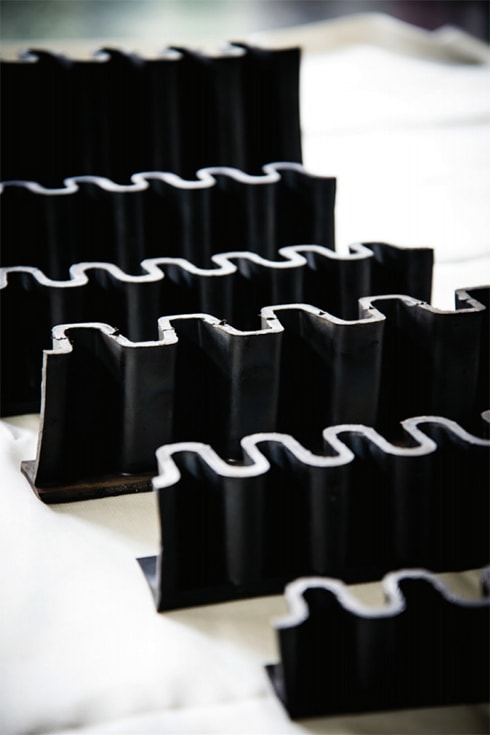

Rubber Sidewalls

Sidewall Belting Bespoke Manufacture

The sidewall on conveyor belts is designed primarily to reduce material spillages, while increasing the load-carrying capacity. UKRB’s bespoke rubber sidewalls are manufactured in six specifications: G60, G80, G120, G160, G200 and G240 – these correspond to the height of the sidewall.

We provide different grades, ranging from general use to oil-resistant sidewalls.

Rubber sidewalls are used mainly for incline conveyor system applications in the quarrying, mining, mineral and metal processing industries. They can also be used on any conveyor belt, in an application where a raised sidewall is needed.

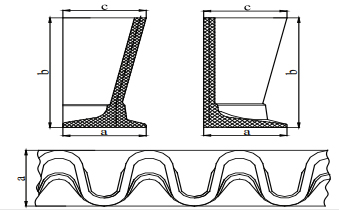

Tip	G60	G80	G120	G160	G200	G240
a, mm	60±1.3	50±1.3	60±1.3	80±1.6	80±1.6	80±1.6
b, mm	60±0.8	80±1	120±1.3	160±1.3	200±1.6	240±1.9
c, mm	55±1.3	50±1.3	60±1.3	80±1.6	80±1.6	80±1.6

Characteristics
Properties	Evaluation
Hardness ShºAn	65+5-4
Tensile strength (kgf/cm2 ), min.	100
Elongation at break %, min.	250
Resistance to accelerated ageing (70h x 70 ° C): – tensile strength change, % – elongation at break change, % – hardness change, ShºA	±25 -25 +10
