TYPE IW-R (IMPACT WEFT WITH REGULAR WARP CORDS)

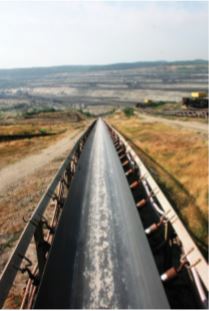

IW-R conveyor belts, having a steel cable mesh, are impact resistant and can be used in a temperature range of -25˚C…max.150ºC. They are used for transport over long distances or for splicing with steel cord conveyor belts. Special steel cords are used to give an adequate behavior at compression, a favorable elongation and a good tearing resistance.

Belt Widths and Edges

The widths are between 500-1600 mm for conveyor belts with moulded edges.

Type	IW 630	IW 800	IW 1000	IW 1250	IW 1400	IW 1600	IW 1800	IW 2000
Transversal tensile strength , N/mm	200	200	200	200	200	200	200	200
Mass, Kg/m2	3.45	4.35	5.20	6.40	6.90	7.90	9.10	9.80
Thickness, mm	5.00	5.60	5.60	6.40	6.40	7.20	7.20	7.20
Longitudinal tensile strength, N/mm	630	800	1000	1250	1400	1600	1800	2000
Warp cords	7×7
Diameter, mm	3.0	3.60	3.60	4.40	4.40	5.20	5.20	5.20
Cord breaking strength – average, N – minimum, N	10300 9700	14300 13500	14300 13500	21000 19800	21000 19800	28400 26700	28400 26700	28400 26700
Elongation at break ,%	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Density lin., g/m	34.7	51.0	51.0	76.5	76.5	105	105	105
-%Cu -%Zn	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5
Pitch, mm	14	15	12	14	13	15	13	12
Cord density/m	71.4	66.7	83.3	71.4	76.9	66.7	76.9	83.3
Weft cords	4x(0.28+6×0.25)HE
Diameter mm	2.10	2.10	2.10	2.10	2.10	2.10	2.10	2.10
Cord breaking strength – average, N – minimum, N	3075 2900	3075 2900	3075 2900	3075 2900	3075 2900	3075 2900	3075 2900	3075 2900
Density lin., g/m	12.63	12.63	12.63	12.63	12.63	12.63	12.63	12.63
Elongation at break,%	7.50	7.50	7.50	7.50	7.50	7.50	7.50	7.50
-%Cu -%Zn	63.5 36.5	63.5 36.5	63.5 36.5	63.5 36.5	63.5 36.5	63.5 36.5	63.5 36.5	63.5 36.5
Pitch, mm	14	14	14	14	14	14	14	14
Cord density/m	71.4	71.4	71.4	71.4	71.4	71.4	71.4	71.4

TYPE OF BELTS

K – Conveyor belts with flame resistant and antistatic covers.
S – Flame resistant conveyor belts (both carcass and covers).
ST2 – Heat resistant conveyor belts (120ºC, max. 130ºC) .
ST3 – Heat resistant conveyor belts (max.150ºC).
W, X and Y – Conveyor belts for general use.

Physical-mechanical characteristics	DIN 22102/1					UKRB Standard
Physical-mechanical characteristics	W	X	Y	K₁	K₂	S₁	S₂	ST2	ST3
Tensile strength, kgf/cm2, min.	180	250	200	200	150	200	150	150	80
Elongation at break, %, min.	400	450	400	400	350	400	350	450	350
Abrasion, mm3, max	90	120	150	200	200	200	200	200	200
