UKRB-FLEX - TYPE STRAIGHT WARP - R/RE +150ºC AND +200ºC

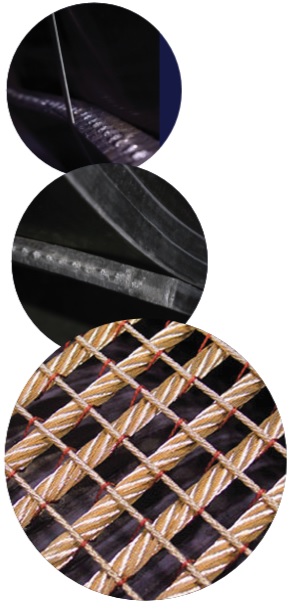

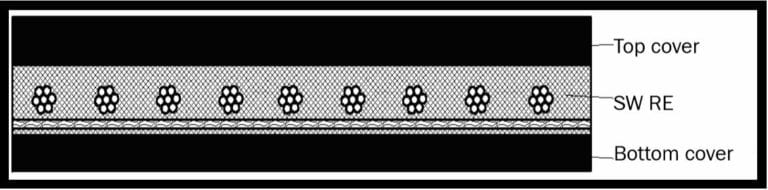

SW-R/RE conveyor belts, having a steel cable mesh, are resistant to high temperatures and can be used in a temperature range of -25ºC…max 150ºC or -25ºC…180ºC (max 200ºC). Special steel cords gives the belt a good impact resistance, an adequate behaviour at comprssion, a favourable elongation and a good tearing resistance. The resistance classes are between 1600 and 4000 N/mm to assure a good life span in very hard working conditions. This can be subject to change when transporting materials with sharp edges.

Belt Widths and Edges

The widths are between 500-1600 mm for conveyor belts with moulded edges.

Resistance class (N/mm)	1600	2000	2200	2500	2750	3000	3200	3500	4000
Transversal tensile strength , N/mm	250	250	250	250	250	250	250	250	250
Mass, Kg/m2	7.12	8.64	9.16	10.54	11.5	12.66	13.60	15.28	17.15
Thickness, mm	6.18	6.18	6.18	7.78	7.78	7.78	7.78	7.78	7.78
Warp cords	7×7			7×7
Diameter, mm	3.5	3.6	3.6	5.2	5.2	5.2	5.2	5.2	5.2
Cord breaking strength – average, N – minimum, N	14300 13500	14300 13500	14300 13500	28400 26700	28400 26700	28400 26700	28400 26700	28400 26700	28400 26700
Density lin., g/m	51	51	51	105	105	105	105	105	105
Elongation at break , min%	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
-%Cu -%Zn	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5
Pitch, mm	8.33	6.67	6.25	11	10	9	8.33	7.35	6.5
Cord density/m	120	150	160	91	100	111	120	136	154
Weft cords	3×0.60
Diameter mm	1.29	1.29	1.29	1.29	1.29	1.29	1.29	1.29	1.29
Cord breaking strength – average, N – minimum, N	1925 1775	1925 1775	1925 1775	1925 1775	1925 1775	1925 1775	1925 1775	1925 1775	1925 1775
Density lin., g/m	6.70	6.70	6.70	6.70	6.70	6.70	6.70	6.70	6.70
-%Cu -%Zn	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5
Pitch, mm	6.67	6.67	6.67	6.67	6.67	6.67	6.67	6.67	6.67
Cord density/m	150	150	150	150	150	150	150	150	150

TYPE OF BELTS

K – Conveyor belts with flame resistant and antistatic covers.
S – Flame resistant conveyor belts (both carcass and covers).
ST2 – Heat resistant conveyor belts (120ºC, max. 130ºC) .
ST3 – Heat resistant conveyor belts (max.150ºC).
W, X and Y – Conveyor belts for general use.

Physical-mechanical characteristics	DIN 22102/1					UKRB Standard
Physical-mechanical characteristics	W	X	Y	K₁	K₂	S₁	S₂	ST2	ST3
Tensile strength, kgf/cm2, min.	180	250	200	200	150	200	150	150	80
Elongation at break, %, min.	400	450	400	400	350	400	350	450	350
Abrasion, mm3, max	90	120	150	200	200	200	200	200	200

TYPE OF BELTS

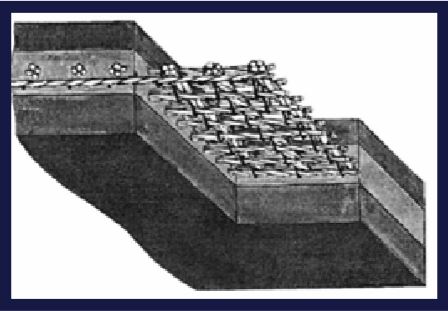

ST3– Heat resistant conveyor belts (max.150ºC).
W, X and Y – Conveyor belts for general use.

Physical and mechanical characteristics	Values (UKRB Standard)
Physical and mechanical characteristics	ST3
Tensile strength, kgf/cm2, min.	120
Elongation at break, %, min.	350
Abrasion, mm3, max	250
Resistance to accelerate aging (168h at 150ºC)
– Decrease of tensile strength % max.	60
– Decrease of elongation at break % max.	80
– Increase of hardness Sh A, max.	30
