UKRB-GOFLEX CONVEYOR BELTS WITH BREAKER

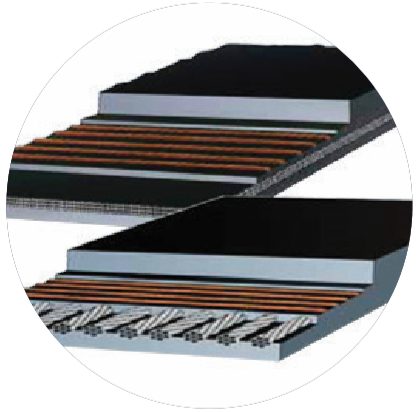

UKRB-GOFLEX belts are specially designed to resist the impact of sharp and voluminous materials. They are also known as impact and tearing resistant conveyor belts. The special characteristics of these belts are given by their insertion with textile or metallic breaker which helps the carcass and the entire belt to be tearing resistant. Based on the type of breaker, (BF-HE, Breaker FabricHigh Elongation or BF-RE, Breaker Fabric-Regular Elongation), we have the following categories of belts: UKRB-GOFLEX – HE and UKRB-GOFLEX – RE. Both UKRB-GOFLEX belts are available in many variants; general use, oil resistant, temperature resistant and flame resistant. The position and number of breakers are chosen by the case. The textile insertions within the carcass can be polyester/polyamide (EP), polyester/polyester (EE) or polyamide/polyamide (PP).

Belt Widths and Edges

Both belts are available with cut or closed edges and widths between 500 and 1800 mm.

Chevron Conveyor Belts

When you need to transport bulk or packed materials on a steep slope, the design of UKRB chevron conveyor belts reduces the risk of slipping, thus enabling transportation on an inclined plane.

Find Out More

Adhesion (N/MM) – DIN 22102/1
Between fabrics	5
Between fabrics and rubber:	–
Thickness of the inner layer rubber between 0.8 and 1.5 mm	3.5
Thickness of the inner layer rubber bigger than 1.5 mm	4.5

Type	BF-125 RE	BF-250 RE	BF-315 RE	BF-500 RE	BF-630 RE	BF-800 RE
Mass, Kg/m²	0.55	1.10	1.40	2.20	2.80	3.15
Thickness, mm	1.60	2.00	2.00	2.00	2.00	2.00
Warp type	Nylon 940x2x2 RFL
Breaking strength (N/yarn)	250	250	250	250	250	250
Elongation at break ,%	25	25	25	25	25	25
Density lin., g/m	0.44	0.44	0.44	0.44	0.44	0.44
Density ,yarns/m	200	200	200	200	200	200
Edges, mm	7.5	7.5	7.5	7.5	7.5	7.5
Tensile strength, N/mm	50	50	50	50	50	50
Weft cord	2x2x0.38	3xO.60
Diameter mm	1.00	1.29	1.29	1.29	1.29	1.29
Cord breaking strength – average (N) – minimum (N)	1050 970	1925 1775	1925 1775	1925 1775	1925 1775	1925 1775
Density lin., g/m	3.56	6.70	6.70	6.70	6.70	6.70
-%Cu -%Zn	63.5 36.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5	67.5 32.5
Pitch, mm	7.50	6.60	5.20	3.20	2.50	2.20
Density, cord/m	133	150	190	310	400	455

Type	BF-125 HE	BF-250 HE	BF-315 HE	BF-500 HE	BF-630 HE	BF-800 HE
Mass, Kg/m²	0.77	1.20	1.45	2.50	3.20	3.95
Thickness, mm	1.95	2.10	2.10	3.00	3.00	3.00
Warp type	Nylon 940x2x2 RFL
Breaking strength (N/yarn)	250	250	250	250	250	250
Elongation at break ,%	25	25	25	25	25	25
Density lin., g/m	0.44	0.44	0.44	0.44	0.44	0.44
Density ,yarns/m	200	200	200	200	200	200
Edges, mm	7.5	7.5	7.5	7.5	7.5	7.5
Tensile strength, N/mm	50	50	50	50	50	50
Weft cord	4x4x0.22 HE	3x7x0.22 HE		4x7x0.30 HE
Diameter mm	1.32	1.52	1.52	2.40	2.40	2.40
Cord breaking strength – average (N) – minimum (N)	1220 1150	1820 1720	1820 1720	4000 3775	4000 3775	4000 3775
Density lin., g/m	5.40	6.95	6.95	17.20	17.20	17.20
-%Cu -%Zn	63.5 36.5	63.5 36.5	63.5 36.5	63.5 36.5	63.5 36.5	63.5 36.5
Pitch, mm	8.00	6.40	5.10	7.10	5.60	4.50
Density, cord/m	125	156	196	141	179	222

TYPES OF CONVEYOR BELTS

W, X, Y, Z – conveyor belts for general use
MOR – conveyor belts with medium oil resistance of the covers
G – conveyor belts with medium oil resistance both covers and carcass
ROS – conveyor belts with excellent oil resistance both covers and carcass
K – conveyor belts, antistatic, with flame resistant rubber covers
S – conveyor belts, antistatic, flame resistant (both carcass and covers)
ST2 – conveyor belts resistant at 120ºC , max. 130ºC
ST3 – conveyor belts resistant at max. 150ºC

Physical-mechanical characteristics	DIN 22102/1					Values (UKRB Standard)
Physical-mechanical characteristics	W	X	Y	Z	MOR	G	ROS	K₁	K₂	S₁	S₂	ST2	ST3
Tensile strength, kgf/cm2, min.	180	250	200	150	150	150	150	200	150	200	150	100	100
Elongation at break, %, min.	400	450	400	350	450	450	350	400	350	400	350	350	350
Abrasion, mm3, max	90	120	150	250	160	160	150	200	200	200	200	200	200
Working Temperature	-25….+70ºC				-25…+80ºC			25….+70ºC				-25..+120, max.130ºC	-25.. +150ºC

Adhesion (N/MM) – DIN 22102/1
Between fabrics	5
Between fabrics and rubber:	–
Thickness of the inner layer rubber between 0.8 and 1.5 mm	3.5
Thickness of the inner layer rubber bigger than 1.5 mm	4.5
